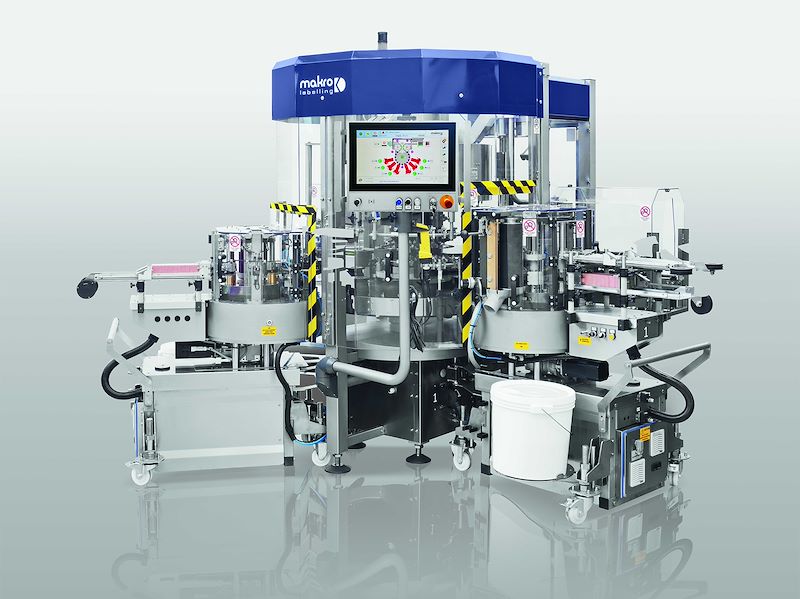

Mak Rotary

Up to 3 removable modules

Mak Rotary - Up to 3 removable modules
Mak Rotary - Up to 3 removable modulesMak Rotary - Up to 3 removable modulesMak Rotary - Up to 3 removable modulesMak Rotary - Up to 3 removable modules
  • Modular rotary labelling machines for medium/low speeds

  • Ease of operator maintenance

  • High labelling precision thanks to the version of MAK stations
For small businesses wanting the modularity of Makro Labelling machines, the MAK rotary removable category (up to 5 stations) offers the compact size of the MAK Rotary fixed but with all the benefits of modules, making maintenance work easier for the operator.

The machine’s modularity makes it easy to change the type of production.

The module on the labelling station around the main carousel may be FIXED or REMOVABLE, hooking and unhooking directly onto the touchscreen panel.

All the cold glue labelling units in the range (MAK-GS MAK-G, MAK-GH and MAK-GLL) ensure high productive efficiency while permitting rapid dismantling of tools for maintenance, making this task simple and intuitive for the operator.

They are controlled entirely through touch panels, with intuitive control to optimize production and obtain outstanding results.

A number of options may be installed on these models on request, including Makro's patented optic centring and label control systems: Follower, Raptor and Alice.
Modular
Adjustable
Flexible

Machines

Model Speed/h Machine ⌀
mm
Platform Stations
MAK-1 3.500 - 14.000 520 4 up to 12 1 up to 3
MAK-2 5.000 - 24.000 780 6 up to 18 1 up to 3
MAK-3 5.000 - 36.000 1040 8 up to 28 1 up to 3

Labelling units

Station Division Model
MAK-GS 2/2 - 3/3 MAK-1/2/3
MAK-G 2/3 - 3/3 - 4/4 - 4/5 - 5/5 - 5/6 - 6/6 MAK-1/2/3
MAK-GHS 4/4 - 5/5 - 6/7 - 8/8 – 8/9 MAK-2/3
MAK-GLL 4/4 - 5/4 MAK-2/3

Optionals

Mak Rotary - Up to 3 removable modules

Universal starwheels

Mak Rotary - Up to 3 removable modules

Centring systems

Mak Rotary - Up to 3 removable modules

Control systems

Mak Rotary - Up to 3 removable modules

Rejection systems

Mak Rotary - Up to 3 removable modules

Smoothing grip

Mak Rotary - Up to 3 removable modules

Input-output configurations

Mak Rotary - Up to 3 removable modules

Puck - Godet

Mak Rotary - Up to 3 removable modules

Pressurization of empty containers

Mak Rotary - Up to 3 removable modules

Automatic axis control

Mak Rotary - Up to 3 removable modules

Marker support
