Mak Rotary

Up to 5 removable modules

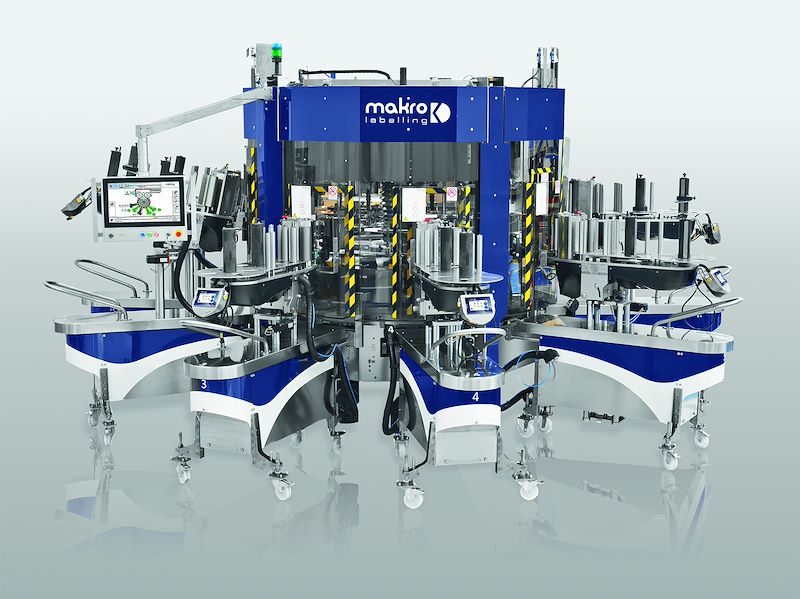

Mak Rotary - Up to 5 removable modules
Mak Rotary - Up to 5 removable modulesMak Rotary - Up to 5 removable modulesMak Rotary - Up to 5 removable modulesMak Rotary - Up to 5 removable modulesMak Rotary - Up to 5 removable modules
  • Modular rotary labelling machines for medium/low speeds

  • Ease of operator maintenance

  • High labelling precision thanks to the new "Slim" version of MAK stations.
For small businesses wanting the modularity of Makro Labelling machines, the MAK rotary removable category (up to 5 stations) offers the compact size of the MAK Rotary fixed but with all the benefits of modules, making maintenance work easier for the operator.

The machine’s modularity makes it easy to change the type of production.

The module on the labelling station around the main carousel may be FIXED or REMOVABLE, hooking and unhooking directly onto the touchscreen panel.

SLIM 50 and SLIM 85 self-adhesive labelling stations, ideal for medium/low rates of production, guarantee high production efficiency and rapid assembly of label reels and require low maintenance.

They are controlled entirely through touch panels, with intuitive control to optimize production and obtain outstanding results.

A number of options may be installed on these models on request, including Makro's patented optic centring and label control systems: Follower, Raptor and Alice.
Modular
Adjustable
Flexible

Machines

Model Speedb/h Machine ⌀
mm
Platform Stations
MAK-1 3.500 - 11.500 520 4 up to 12 1 up to 3
MAK-2 6.000 - 18.000 780 6 up to 18 1 up to 4
MAK-3 8.000 - 24.000 1040 8 up to 24 1 up to 5

Labelling units

Station Production speedm/min Reel ⌀
mm
Model
SLIM 50 50 300 MAK-1/2
SLIM 85 85 400 MAK-2/3
SLIM 100 100 400 MAK-2/3

Optionals

Mak Rotary - Up to 5 removable modules

Universal starwheels

Mak Rotary - Up to 5 removable modules

Centring systems

Mak Rotary - Up to 5 removable modules

Control systems

Mak Rotary - Up to 5 removable modules

Rejection systems

Mak Rotary - Up to 5 removable modules

Smoothing grip

Mak Rotary - Up to 5 removable modules

Input-output configurations

Mak Rotary - Up to 5 removable modules

Puck - Godet

Mak Rotary - Up to 5 removable modules

Pressurization of empty containers

Mak Rotary - Up to 5 removable modules

Automatic axis control

Mak Rotary - Up to 5 removable modules

Marker support
