Mak Rotary

Up to 5 fixed modules

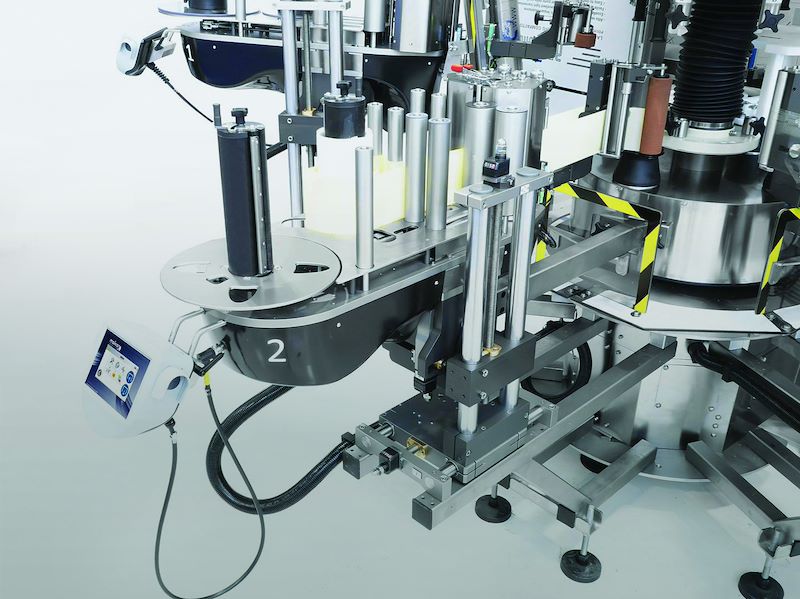

Mak Rotary - Up to 5 fixed modules
Mak Rotary - Up to 5 fixed modulesMak Rotary - Up to 5 fixed modulesMak Rotary - Up to 5 fixed modulesMak Rotary - Up to 5 fixed modules
  • Compact version of low speed linear labelling machines

  • Perfect for work environments with limited space requirements

  • Quick access for format changeover
MAK Rotary labellers with fixed modules are intended for companies that do not require high production speed.

These machines always maintain the specific features of Makro Labelling technology, and are equipped with mechanical or electronic rotation of the bottle platforms.

They are fitted with a door enclosure system mounted directly on the frame, making the footprint compact.

SLIM 50 and SLIM 85 self-adhesive labelling stations, ideal for medium/low rates of production, guarantee high production efficiency and rapid assembly of label reels and require low maintenance.

Complete management takes place through touch panels, offering intuitive control to optimize production and obtain outstanding results.

A number of options may be installed on these models on request, including Makro's patented optic centring and label control systems: Follower, Raptor and Alice.
Compact
Easy to access
Flexible

Machines

Model Speedb/h Machine ⌀
mm
Platform Stations
MAK-01 3.500 - 11.500 520 4 up to 12 1 up to 3
MAK-02 6.000 - 18.000 780 6 up to 18 1 up to 4
MAK-03 8.000 - 24.000 1040 8 up to 24 1 up to 5

Labelling units

Station Production speed
m/min
Reel ⌀
mm
Model
SLIM 50 50 300 MAK-01/02
SLIM 85 85 400 MAK-01/02
SLIM 100 100 400 MAK-02/03

Optionals

Mak Rotary - Up to 5 fixed modules

Universal starwheels

Mak Rotary - Up to 5 fixed modules

Centring systems

Mak Rotary - Up to 5 fixed modules

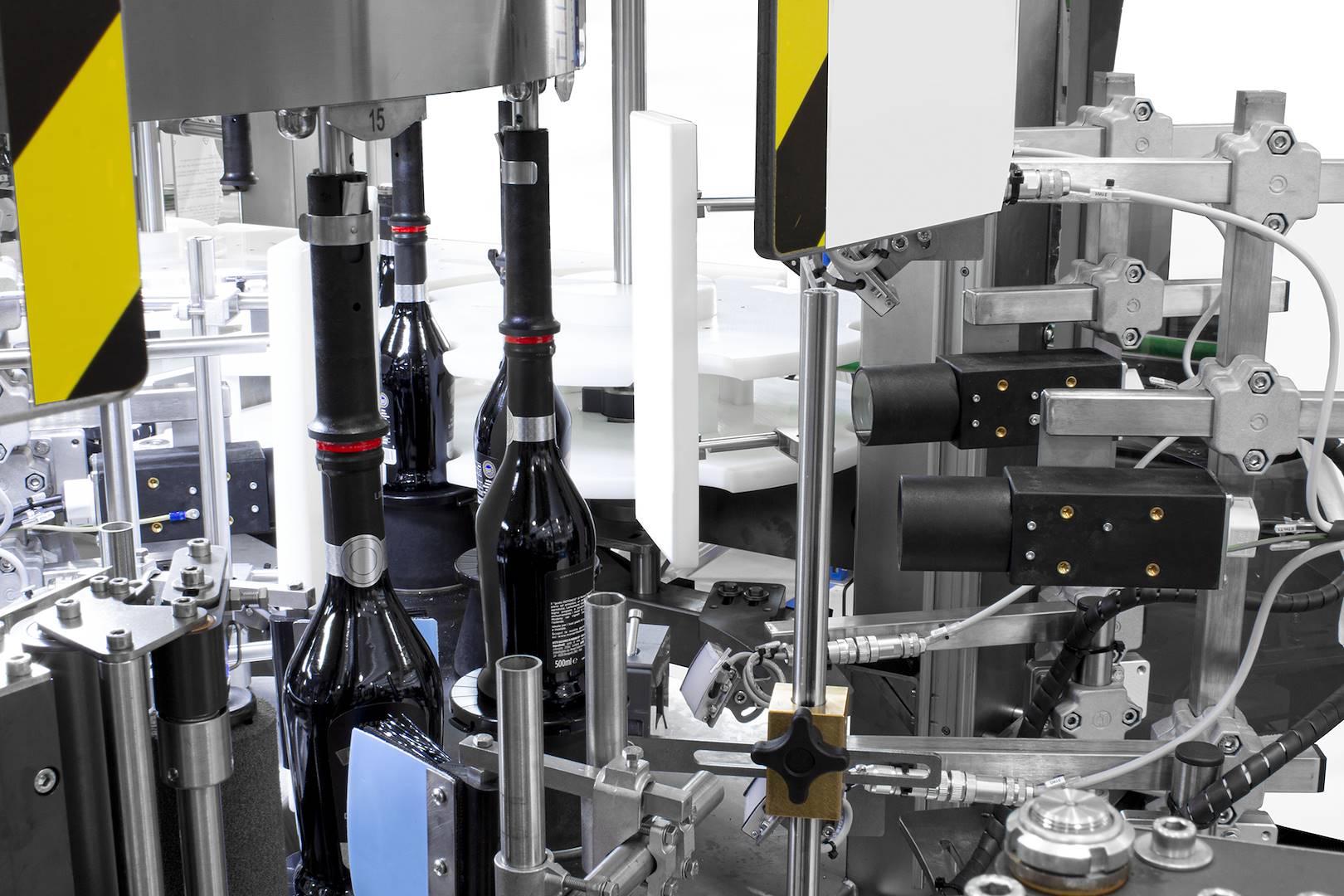

Control systems

Mak Rotary - Up to 5 fixed modules

Rejection systems

Mak Rotary - Up to 5 fixed modules

Smoothing grip

Mak Rotary - Up to 5 fixed modules

Input-output configurations

Mak Rotary - Up to 5 fixed modules

Puck - Godet

Mak Rotary - Up to 5 fixed modules

Pressurization of empty containers

Mak Rotary - Up to 5 fixed modules

Automatic axis control

Mak Rotary - Up to 5 fixed modules

Marker support
